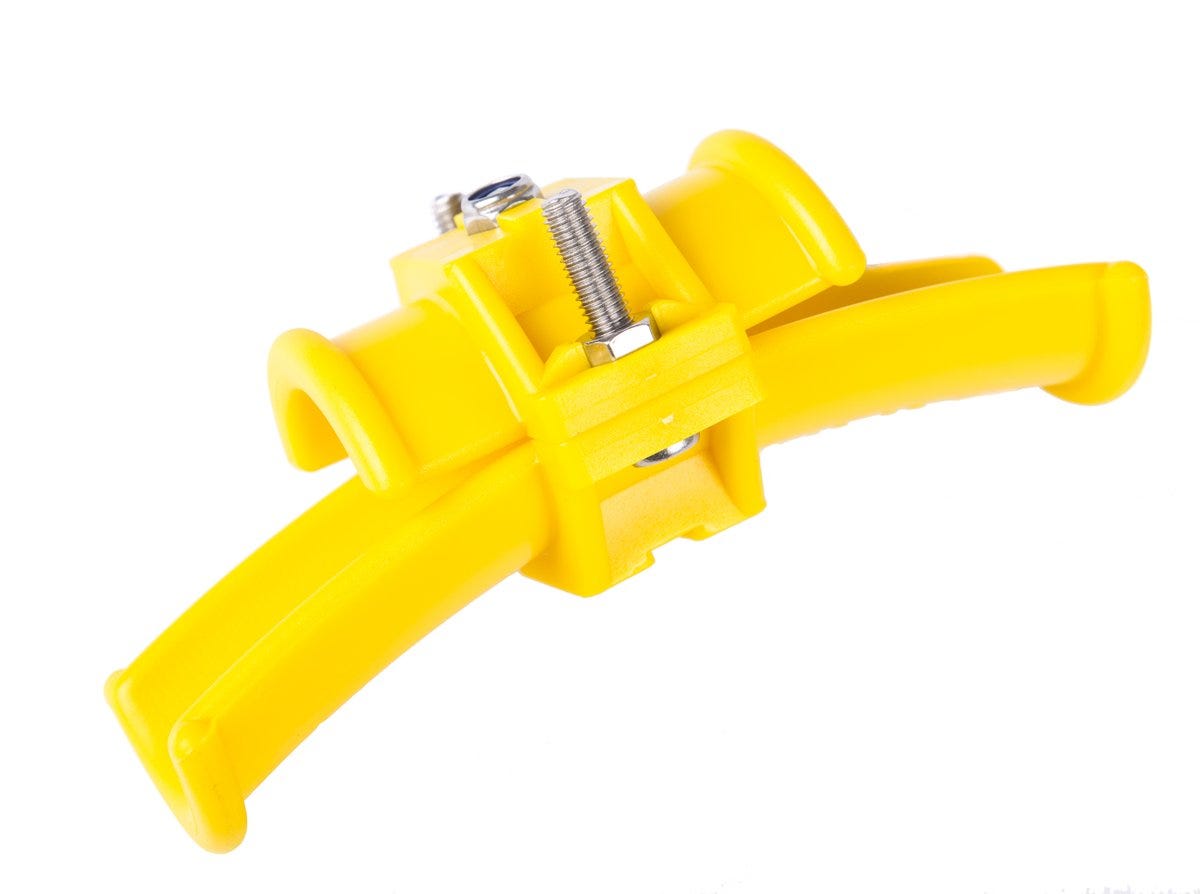

喉箍 26-36MM 不锈钢
Cable trolley component
喉箍 26-36MM 不锈钢
SGD 40.42
/
喉箍 26-36MM 不锈钢
SGD 40.42
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
技术属性
一般信息
| Cable trolley system components | Cable clamp |
| Product type | Cable trolley component |
| Cable trolley system | C30 Stainless Steel |
| Delivery Unit | 1.000 |
| Weight | 0.12 kg |
电气特性
产品设计
| Shape of cable | Round |
| Cable clamp diameter | 320 |
| Total length | 140.0 |
| For min. cable outer diameter | 26.0 |
| For max. cable outer diameter | 36.0 |
产品特点
认证和标准
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
产品系列列表
All articles from Clamp for round cable
| Article number | Shape of cable | Cable trolley system | Flat cable height (max.) | For min. cable outer diameter | Imp 4cable outer diam min | Imp flat cable hight max | Flat cable width (max.) | For max. cable outer diameter | Imp 4cable outer diam max | Imp flat cable width max | Cable clamp diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 62200130 | Round | C30 Stainless Steel | 10.0 | 16.0 | 160 | ||||||
| 62200437 | Round | C30, C40, Steel rope, T-carrier | 10.0 | 16.0 | 160 | ||||||
| 62200438 | Round | C30, C40, Steel rope, T-carrier | 17.0 | 25.0 | 250 | ||||||
| 62200439 | Round | C30, C40, Steel rope, T-carrier | 26.0 | 36.0 | 320 | ||||||
| 62200463 | Round | C30 Stainless Steel | 17.0 | 25.0 | 250 | ||||||
| 62200700 | Round | C30 Stainless Steel | 26.0 | 36.0 | 320 |
