电子模块

Single core module; including 2 boxes; H05V-K HAR, H07V-K HAR; Rings/coils capacitance: 2

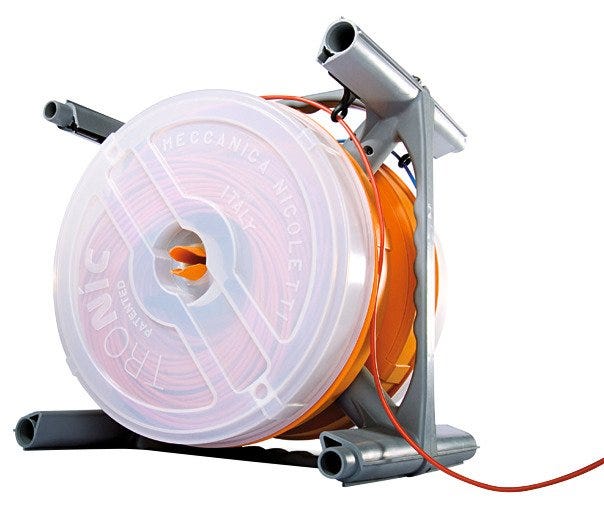

Primary ImagePrimary Image

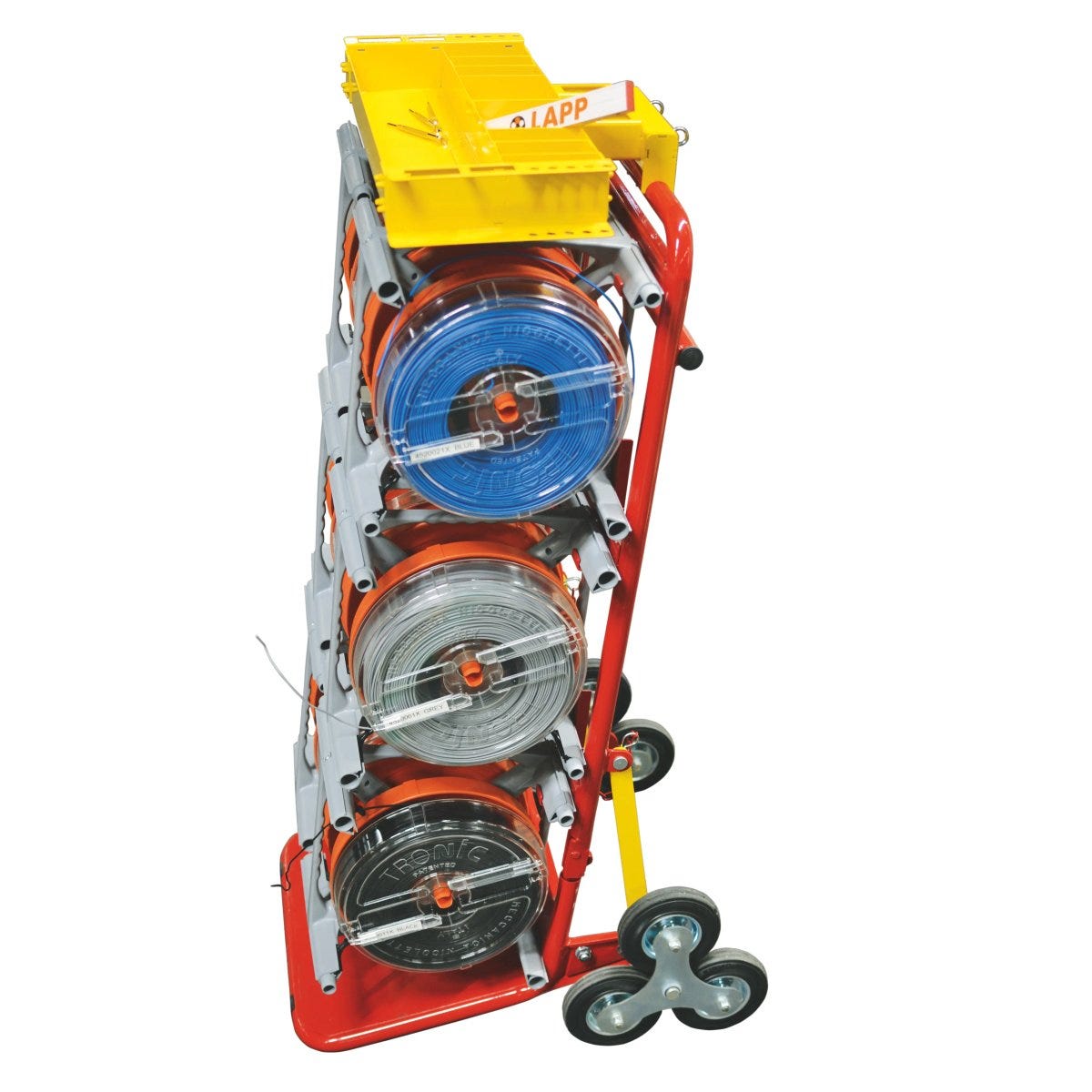

Secondary ImageSecondary Image
Primary Image
Secondary Image
LAPPSKU: 85001625Article No.#: 85001625

电子模块

Single core module; including 2 boxes; H05V-K HAR, H07V-K HAR; Rings/coils capacitance: 2
Primary Image
电子模块
SGD 461.07
付款与安全
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa

您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。

技术属性

一般信息
Product type Single core module
Cable weight (max.) per module 7
Scope of delivery including 2 boxes
Suitable cable H05V-K HAR, H07V-K HAR
Delivery Unit 1.000
Weight 2.6 kg
电气特性
产品设计
Overall width 335
Total length 335
For ring inner diameter (min.) 80
for cable ring outer diameter (max.) 295
For max. cable outer diameter 10
Total height 280
For ring inner diameter (max.) 180
For ring height (max.) 80
Rings/coils capacitance 2
产品特点
认证和标准
文档
Downloads
Package insert - de-DE (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Trade product, not a LAPP product.
产品系列列表
All articles from TRONIC module solutions
Article number Scope of delivery Suitable cable Rings/coils capacitance
85001621 including 6 TRONIC modules H05V-K HAR, H07V-K HAR, H07V-U 12
85001622 including 18 TRONIC modules H05V-K HAR, H07V-K HAR, H07V-U 36
85001625 including 2 boxes H05V-K HAR, H07V-K HAR 2
85001639 including 6 TRONIC modules H05V-K HAR, H07V-K HAR, H07V-U 12
